Description
The Tera2060-2 is 6 channel 1.25G/2.5G/5G/6G/8G/10G/12.5G BERT system, could provide 1.25G/2.5G/5G/6G/8G/10G/12.5G optical module test/debug solution for R&D engineer and manufacture.
The Tera2060 could work mother board with daughter card. Replaceable daughter card for SFP/SFP+ module volume testing.
? 9V power supply, could support remote control in lab.
? Support different PRBS pattern, include PRBS7/PRBS11/PRBS15/PRBS23/PRBS31
? Could parallel test 6pcs SFP/SFP+ module: 1.25G/2.5G/5G/6G/8G/10G/12.5G
? Support real-time BER report for 6pcs SFP/SFP+
? Support Alarm-history function, record alarm history at long-term testing
? Both port have trig clock output for the eye diagram monitor.

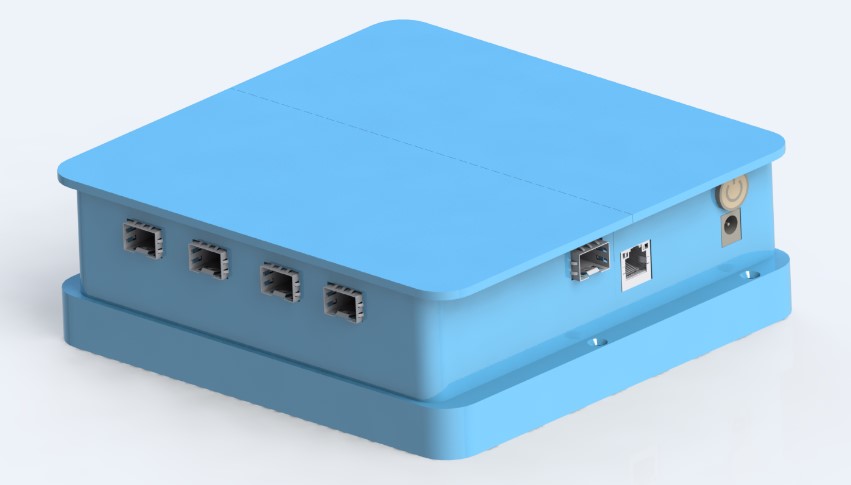

Tera2060 Physical Interface
Power supply
Tera2060 adapter 9V DC power supply. Power supply must not exceed 9V, higher than 9V will damage the analyzer permanently.
Console Interface
Tera2060 use the COM for the remote control and test function.
Traffic Interface
Current Tera2060 have two type daughter card option for SFP and RF connector, Also could support HDMI and USB 3.0 Type C connector :
1st option is standard 6 optical lane SFP cage.
|
Parameter |
Min |
Typical |
Max |
Unit |
備注 |
|
Bit rate |
1.25 |
|
12.5 |
Gb/s |
|
|
Amplitue |
200 |
|
800 |
mV |
|
|
Jitter（P-P） |
|
|
22.5 |
Ps |
|
|
Jitter（RMS） |
|
2.0 |
3.0 |
Ps |
** |
|
Rising/Fall time |
18 |
|
|
Ps |
|
|
Pre-emp |
|
|
4 |
dB |
|
|
Input |
20 |
|
1000 |
mV |
|
|
Input Jitter Tolerance |
|
0.5 |
|
UI |
均衡最優 |
|
Input |
|
|
12 |
dB |
|
|
Power supply |
5 |
8.5 |
9 |
V(DC) |
|
|
Power dissipation |
|
|
15 |
W |
|
|
Temperature |
-5 |
|
55 |
oC |
|
|
Store |
-10 |
|
70 |
oC |
|
|
Humility |
5 |
|
90 |
% |
Non-Condensing |
|
RF interface |
K（2.92mm），Compliant SMA |
|
|||
**notes: Measurements based on PRBS^23-1 data at 9.95 Gbps,.
Trigger Clock Interface
Tera2140 have two trigger clock for the both group port:
1st trigger clock is for 6 channel, support 1.25G/2.5G/8G/10.3G/11.3G eye diagram test
2nd trigger clock is for the 6channel, support 3.125G/6G/9G/12.5G eye diagram test

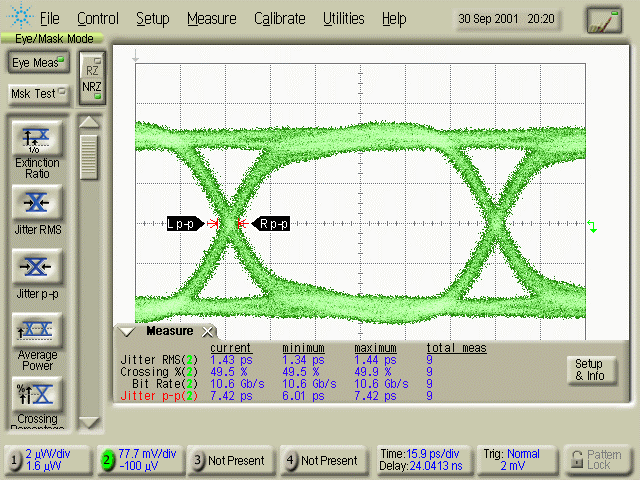

10.7 Gbps output eye diagram
2060 RF port output eye

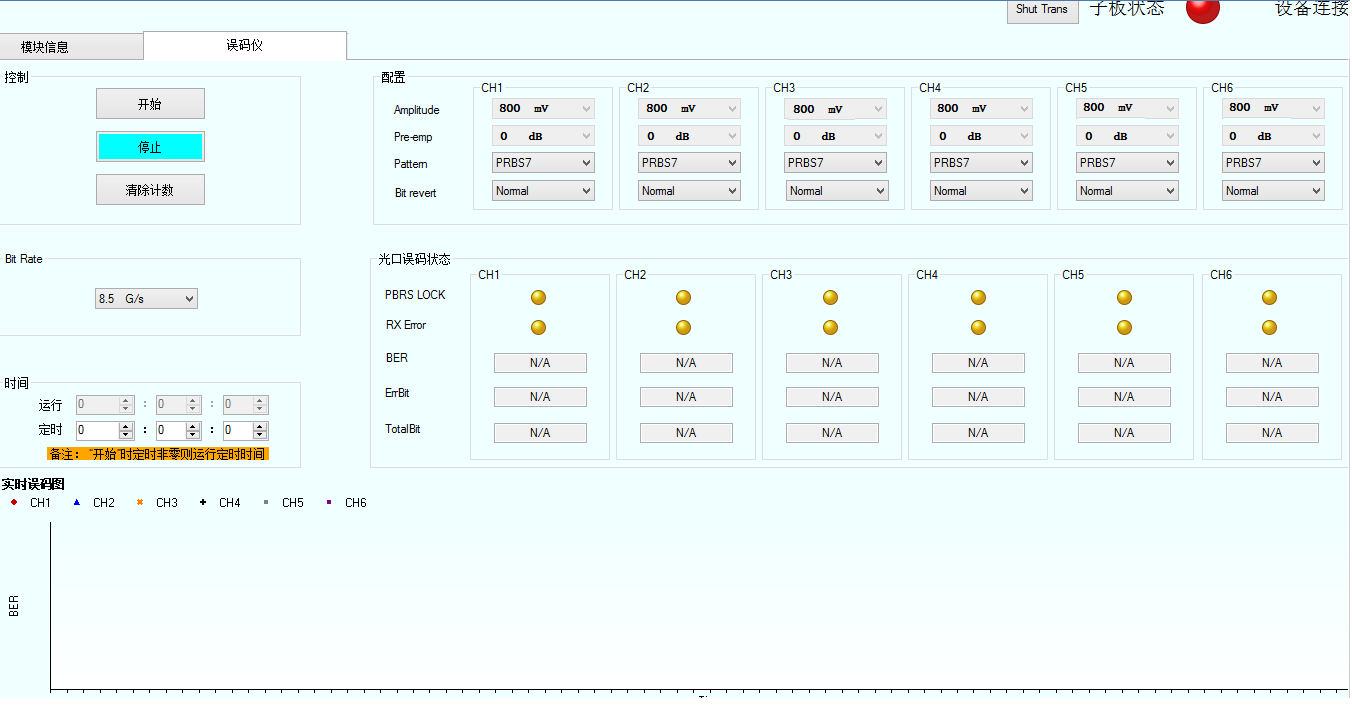

GUI
The BERT system could be control by computer，RF BERT and optical BERT system GUI as following
Operate procedure
